State of the Art Steel Fabrication Equipment
STEELCORE'S partners are leading the global solution for steel framing technology as they research and develop the world's most advanced robotic machines for the steel framing industry. One owns multiple global patents for all of its advanced technology and applications while the other is the pioneer in this industry.
Combined they have placed equipment in 5 continents and over 50 countries. Currently there are over 10 different machines available from single profile to fully automated multi profile machines. All come with full training, set up and ongoing support.
Single or Dual Profile Machines
3.5" Multi Tool Systems

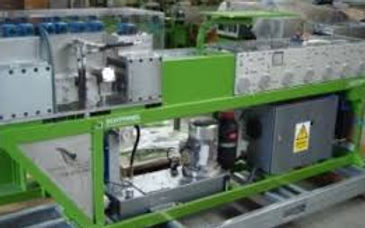

The Series 700 Fabrication System operates from a laptop computer utlilising ScotSteel design and ScotRF software and includes a powered decoiler.
It provides six individual hydraulic functions that work together (cut to length, swage, notch punch, squash, rivet punch and service hole punch) accurately producing components ready for assembly.
Easy to use and transport, it’s built on a robust yet lightweight frame making it ideal for either a high volume fabrication plant or on-site job.
.jpg)
5.5" Multi Tool Systems
Similar to the RF700 rollformer, the RF500 series produces a C-section profile, widely used in the United Kingdom and Europe, with section widths of 90mm and 140mm.
The system is available in 70mm, 76mm, 90mm and 140mm C-section profiles.
Multi Profile Machines - Manual

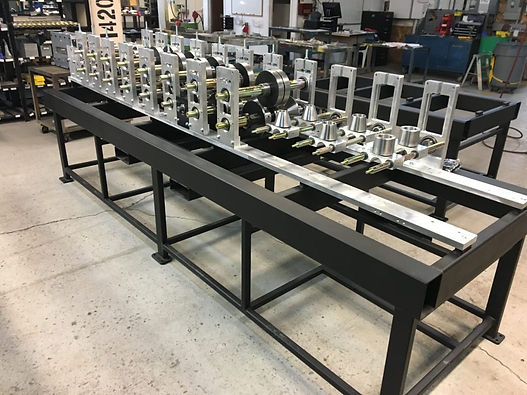

KFS-1622 FRAMEMAKER®
The KFS-1622, a strong, versatile, and fast roll forming machine, forms six (6) web widths and three (3) flange heights in 16 to 22 Ga steel. Speeds up to 120 feet per minute (electric/servo drive) are available.
KFS-1420 FRAMEMAKER®
The KFS-1420, our heavy gauge stud and track framing machine, forms six (6) web widths and three (3) flange heights in 14 to 20 Ga steel. Speeds up to 120 feet per minute (electric / servo drive) are available.
KFD-2025 FRAMEMAKER®
The KFD-2025 Drywall Stud Machine forms non-structural studs in 5 web widths and 1 ¼-inch flange heights in 20 to 25 Ga steel. Speeds up to 120 feet per minute (electric/servo drive) are available.
Multi Profile Machines - Automated
De-Coiler Equipment
Our decoiler comes with a unique automatic power feed designed to supply steel to the rollformer at the required rate.
Mobile and easy to load, it eliminates the requirement for a forklift to place the steel coils onto the decoiler. You simply straddle the coil with the decoiler and the spool moves effortlessly into the coil centre.
The large diameter rubber coated wheels are designed to move over uneven surfaces and the wheel brake ensures complete safety.
.jpg)
.jpg)
2" Hat Truss System
ScotTruss is the most advanced and comprehensive light gauge steel truss system available and includes a powered decoiler, ScotTruss CNC software and Truswal design and engineering software. It’s easy to operate and adjust offering a low maintenance truss fabrication solution.
Eliminating scrap, truss components are produced directly from the coil to the assembly line. The computer controlled RF600 rollformer accurately rolls the chord/web profile through nine progressive stations. This is where the full power and efficiency of the equipment comes into play.
3" Hat Truss System
Five specific functions are hydraulically performed within the toolhead with elements cut to exact length, coped, notched and bolt holes punched to produce components ready for assembly into a completed truss.
A patented profile is used to form the truss chord and web in addition to the holes for the bolted connection.
The ScotTruss system is ideal for both high volume fabrication facilities and on-site jobs.
.jpg)
.jpg)
Containerized System
Our panelised system is ideal for building containerised factories and provides an affordable option for establishing a steel framing plant in a remote location.
Using single-phase power for the panels and three-phase power for the truss, it can be fully fitted out by Scottsdale or we can assist you with constructing one from a standard 20 foot shipping container.
Designed for the harshest environment, the system will operate seamlessly using diesel-based generators.
